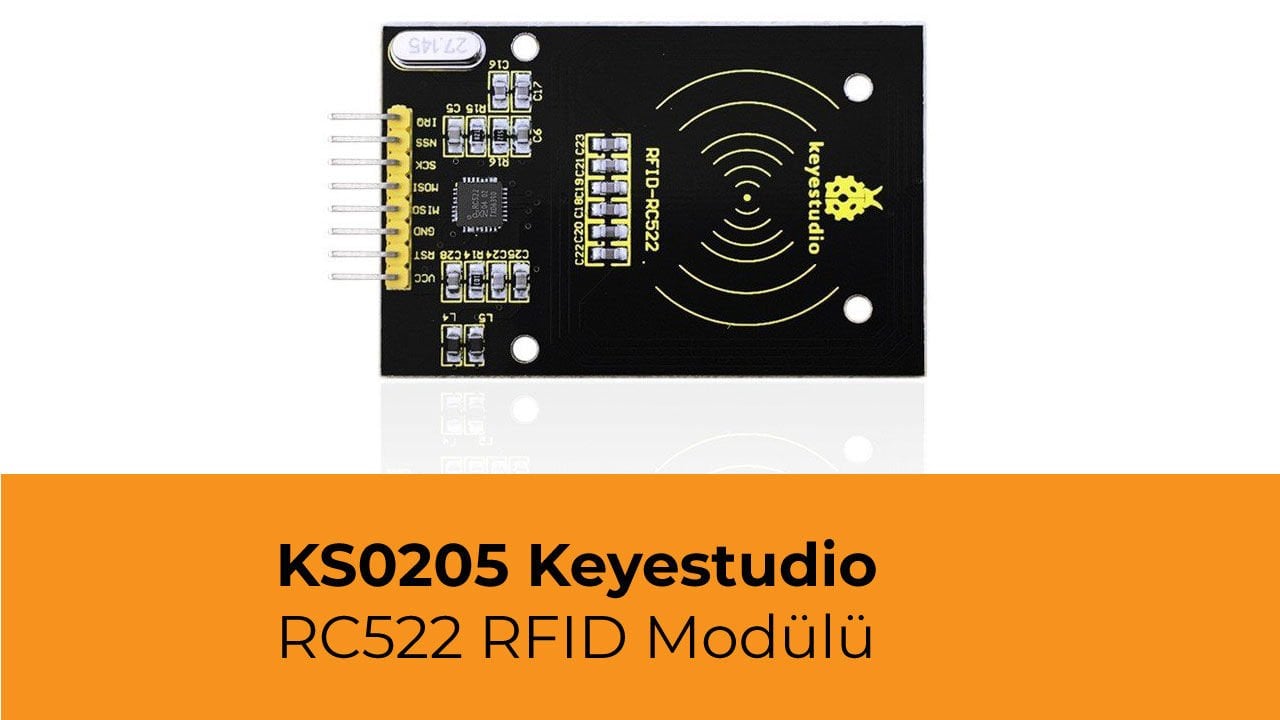

Keyestudio RC522 RFID Modülü

MF522-AN modülü, Philips MFRC522 orijinal okuyucu devre çip tasarımını, kullanımı kolay, düşük maliyetli, ekipman geliştirmeye uygun, okuyucu kullanıcıları gibi gelişmiş uygulamaların geliştirilmesi, kullanıcının RF kart terminal tasarımı / üretimi ihtiyacını benimser.
Bu modül, doğrudan çeşitli okuyucu kalıplarına yüklenebilir. Modül 3,3V voltaj kullanır ve kullanıcıya, sabit ve güvenilir okuyucu mesafesini garanti edebilen basit birkaç hat kullanılarak SPI arayüzü üzerinden herhangi bir CPU kartı iletişim modülüne doğrudan bağlanabilir.


thumb


Parametreler

  • Akım: 13-26mA / DC 3.3V
  • Boşta Akım: 10-13mA / DC 3.3V
  • Uyku akımı: <80uA
  • Tepe akımı: <30mA
  • Çalışma Frekansı: 13.56MHz
  • Desteklenen kart türleri: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
  • Çevresel Çalışma sıcaklığı: -20 ila 80 santigrat derece
  • Çevre Depolama sıcaklığı: -40 ila 85 santigrat derece
  • Bağıl Nem:% 5 -% 95


PIN ÇIKIŞLARI


thumb


Bağlantı şeması


thumb


Örnek Kod

#include
#define	uchar	unsigned char
#define	uint	unsigned int
#define MAX_LEN 16
const int chipSelectPin = 10;//if the controller is UNO,328,168
const int NRSTPD = 5;

//MF522command word
#define PCD_IDLE              0x00               //NO action; cancel current command
#define PCD_AUTHENT           0x0E               //verify key
#define PCD_RECEIVE           0x08               //receive data

#define PCD_TRANSMIT          0x04               //send data
#define PCD_TRANSCEIVE        0x0C               //receive and send data
#define PCD_RESETPHASE        0x0F               //reset
#define PCD_CALCCRC           0x03               //CRC calculation

//Mifare_One Card command word
#define PICC_REQIDL           0x26               // line-tracking area is dormant #define PICC_REQALL           0x52                     //line-tracking area is interfered
#define PICC_ANTICOLL         0x93               //Anti collision
#define PICC_SElECTTAG        0x93               //choose cards
#define PICC_AUTHENT1A        0x60               //Verify A key
#define PICC_AUTHENT1B        0x61               //Verify B key
#define PICC_READ             0x30               // Reader Module
#define PICC_WRITE            0xA0               // letter block

#define PICC_DECREMENT        0xC0
#define PICC_INCREMENT        0xC1
#define PICC_RESTORE          0xC2               //Transfer data to buffer
#define PICC_TRANSFER         0xB0               //Save buffer data
#define PICC_HALT             0x50               //Dormancy


//MF522 Error code returned when communication
#define MI_OK                 0
#define MI_NOTAGERR           1
#define MI_ERR                2


//------------------MFRC522 Register---------------
//Page 0:Command and Status
#define     Reserved00            0x00
#define     CommandReg            0x01
#define     CommIEnReg            0x02
#define     DivlEnReg             0x03
#define     CommIrqReg            0x04
#define     DivIrqReg             0x05
#define     ErrorReg              0x06
#define     Status1Reg            0x07
#define     Status2Reg            0x08
#define     FIFODataReg           0x09
#define     FIFOLevelReg          0x0A

#define     WaterLevelReg         0x0B
#define     ControlReg            0x0C
#define     BitFramingReg         0x0D
#define     CollReg               0x0E
#define     Reserved01            0x0F
//Page 1:Command
#define     Reserved10            0x10
#define     ModeReg               0x11
#define     TxModeReg             0x12
#define     RxModeReg             0x13
#define     TxControlReg          0x14
#define     TxAutoReg             0x15
#define     TxSelReg              0x16
#define     RxSelReg              0x17
#define     RxThresholdReg        0x18
#define     DemodReg              0x19

#define     Reserved11            0x1A
#define     Reserved12            0x1B
#define     MifareReg             0x1C
#define     Reserved13            0x1D
#define     Reserved14            0x1E
#define     SerialSpeedReg        0x1F
//Page 2:CFG
#define     Reserved20            0x20
#define     CRCResultRegM         0x21
#define     CRCResultRegL         0x22
#define     Reserved21            0x23
#define     ModWidthReg           0x24
#define     Reserved22            0x25
#define     RFCfgReg              0x26
#define     GsNReg                0x27
#define     CWGsPReg	          0x28
#define     ModGsPReg             0x29
#define     TModeReg              0x2A
#define     TPrescalerReg         0x2B
#define     TReloadRegH           0x2C
#define     TReloadRegL           0x2D
#define     TCounterValueRegH     0x2E
#define     TCounterValueRegL     0x2F
//Page 3:TestRegister
#define     Reserved30            0x30

#define     TestSel1Reg           0x31
#define     TestSel2Reg           0x32
#define     TestPinEnReg          0x33
#define     TestPinValueReg       0x34
#define     TestBusReg            0x35
#define     AutoTestReg           0x36
#define     VersionReg            0x37
#define     AnalogTestReg         0x38
#define     TestDAC1Reg           0x39
#define     TestDAC2Reg           0x3A
#define     TestADCReg            0x3B
#define     Reserved31            0x3C
#define     Reserved32            0x3D
#define     Reserved33            0x3E
#define     Reserved34			  0x3F
uchar serNum[5];
uchar  writeDate[16] ={'T', 'e', 'n', 'g', ' ', 'B', 'o', 0, 0, 0, 0, 0, 0, 0, 0,0};

uchar sectorKeyA[16][16] = {{0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF},
                             {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF},
                             {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF},
                            };
 uchar sectorNewKeyA[16][16] = {{0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF},
                                {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xff,0x07,0x80,0x69, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF},
                                {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xff,0x07,0x80,0x69, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF},
                               };

void setup() {
   Serial.begin(9600);                       // RFID reader SOUT pin connected to Serial RX pin at 2400bps
 // start the SPI library:
  SPI.begin();

  pinMode(chipSelectPin,OUTPUT);             // Set digital pin 10 as OUTPUT to connect it to the RFID /ENABLE pin
    digitalWrite(chipSelectPin, LOW);          // Activate the RFID reader
  pinMode(NRSTPD,OUTPUT);               // Set digital pin 10 , Not Reset and Power-down
digitalWrite(NRSTPD, HIGH);


  MFRC522_Init();
}

void loop()
{
  	uchar i,tmp;
	uchar status;
        uchar str[MAX_LEN];
        uchar RC_size;
        uchar blockAddr;	//Select the address of the operation 0~63


		// searching card, return card type
		status = MFRC522_Request(PICC_REQIDL, str);
		if (status == MI_OK)
		{
		}


		status = MFRC522_Anticoll(str);
		memcpy(serNum, str, 5);
		if (status == MI_OK)
		{
                        Serial.println("The card's number is  : ");
			Serial.print(serNum[0],BIN);
			Serial.print(serNum[1],BIN);
			Serial.print(serNum[2],BIN);
			Serial.print(serNum[3],BIN);
			Serial.print(serNum[4],BIN);
                        Serial.println(" ");
		}

		// select card, return card capacity
		RC_size = MFRC522_SelectTag(serNum);
		if (RC_size != 0)
		{}

		// write data card
		blockAddr = 7;		// data block 7
		status = MFRC522_Auth(PICC_AUTHENT1A, blockAddr, sectorKeyA[blockAddr/4], serNum);	// authentication
		if (status == MI_OK)

		{
			// write data
			status = MFRC522_Write(blockAddr, sectorNewKeyA[blockAddr/4]);
                        Serial.print("set the new card password, and can modify the data of the Sector: ");
                        Serial.print(blockAddr/4,DEC);

                        // write data
                        blockAddr = blockAddr - 3 ;
                        status = MFRC522_Write(blockAddr, writeDate);
                        if(status == MI_OK)
                        {
                           Serial.println("OK!");
                        }
		}

		// read card
		blockAddr = 7;		// data block 7
		status = MFRC522_Auth(PICC_AUTHENT1A, blockAddr,

sectorNewKeyA[blockAddr/4], serNum);	// authentication
		if (status == MI_OK)
		{
			// read data
                        blockAddr = blockAddr - 3 ;
                        status = MFRC522_Read(blockAddr, str);
			if (status == MI_OK)
			{
                                Serial.println("Read from the card ,the data is : ");
				for (i=0; i<16; i++)
				{
              			      Serial.print(str[i]);
				}
                                Serial.println(" ");
			}
		}
                Serial.println(" ");
		MFRC522_Halt();			// command card into sleeping mode

}

void Write_MFRC522(uchar addr, uchar val)

{
	digitalWrite(chipSelectPin, LOW);

	SPI.transfer((addr<<1)&0x7E);
	SPI.transfer(val);

	digitalWrite(chipSelectPin, HIGH);
}


uchar Read_MFRC522(uchar addr)
{
	uchar val;

	digitalWrite(chipSelectPin, LOW);

	//address format: 1XXXXXX0
	SPI.transfer(((addr<<1)&0x7E) | 0x80);
	val =SPI.transfer(0x00);


	digitalWrite(chipSelectPin, HIGH);

	return val;
}


void SetBitMask(uchar reg, uchar mask)
{
    uchar tmp;
    tmp = Read_MFRC522(reg);
    Write_MFRC522(reg, tmp | mask);  // set bit mask
}



void ClearBitMask(uchar reg, uchar mask)
{
    uchar tmp;
    tmp = Read_MFRC522(reg);
    Write_MFRC522(reg, tmp & (~mask));  // clear bit mask
}

void AntennaOn(void)
{
	uchar temp;

	temp = Read_MFRC522(TxControlReg);
	if (!(temp & 0x03))
	{
		SetBitMask(TxControlReg, 0x03);
	}
}

void AntennaOff(void)
{
	ClearBitMask(TxControlReg, 0x03);
}

void MFRC522_Reset(void)
{

    Write_MFRC522(CommandReg, PCD_RESETPHASE);
}

void MFRC522_Init(void)
{
	digitalWrite(NRSTPD,HIGH);

	MFRC522_Reset();

	//Timer: TPrescaler*TreloadVal/6.78MHz = 24ms
    Write_MFRC522(TModeReg, 0x8D);		//Tauto=1; f(Timer) = 6.78MHz/TPreScaler
    Write_MFRC522(TPrescalerReg, 0x3E);	//TModeReg[3..0] + TPrescalerReg
    Write_MFRC522(TReloadRegL, 30);
    Write_MFRC522(TReloadRegH, 0);

	Write_MFRC522(TxAutoReg, 0x40);		//100%ASK
	Write_MFRC522(ModeReg, 0x3D);		//CRC original value 0x6363	???

	AntennaOn();		// open antenna
}
uchar MFRC522_Request(uchar reqMode, uchar *TagType)
{
	uchar status;

	uint backBits;			// bits of data received
	Write_MFRC522(BitFramingReg, 0x07);		//TxLastBists = BitFramingReg[2..0]	???

	TagType[0] = reqMode;
	status = MFRC522_ToCard(PCD_TRANSCEIVE, TagType, 1, TagType, &backBits);

	if ((status != MI_OK) || (backBits != 0x10))
	{
		status = MI_ERR;
	}

	return status;
}

uchar MFRC522_ToCard(uchar command, uchar *sendData, uchar sendLen, uchar *backData, uint *backLen)
{
    uchar status = MI_ERR;
uchar irqEn = 0x00;

    uchar waitIRq = 0x00;
    uchar lastBits;
    uchar n;
    uint i;

    switch (command)
    {
        case PCD_AUTHENT:		// card key authentication
		{
			irqEn = 0x12;
			waitIRq = 0x10;
			break;
		}
		case PCD_TRANSCEIVE:	// send data in FIFO
		{
			irqEn = 0x77;
			waitIRq = 0x30;
			break;
		}
		default:
			break;
    }

    Write_MFRC522(CommIEnReg, irqEn|0x80);	// permission for interrupt request
    ClearBitMask(CommIrqReg, 0x80);			// clear all bits of the interrupt request
    SetBitMask(FIFOLevelReg, 0x80);			//FlushBuffer=1, FIFO initialize

	Write_MFRC522(CommandReg, PCD_IDLE);	//NO action; clear current command	???

	// write data into FIFO
    for (i=0; i MAX_LEN)

                {
					n = MAX_LEN;
				}

				// read the data received in FIFO
                for (i=0; i


Sonuç

Bu deneyde, IC kartı yaklaştığında, RFID modülü verileri IC kartına yazar ve ardından monitör penceresinde görüntüleyerek verileri okur. Aşağıdaki resimde gösterildiği gibi:
